Leistungsmessgeräte Serie XT2640
XT2640 measuring system with 1 to 4 channels / unit, several units can be combined; direct measurements up to 1000 VRMS / 1750 Vpk and 30 ARMS / 200 Apk. Several power channels with different voltage ranges / accuracies / cutoff frequencies (S / A / E / W) and current options (D / H / X) available

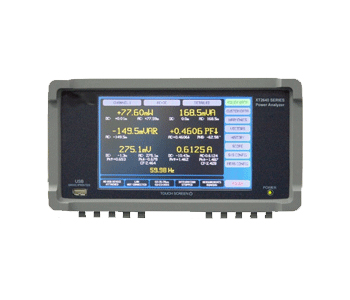

The touchscreen display shows numerical results, waveforms, bar graphs, start and progression diagrams with zoom and scroll functions
Power and amplitude measurements with an accuracy of <0.1%
Frequency range: up to 3 MHz
peak, rms, rectified and DC components of voltage, current and power
Frequency analysis
Communication interfaces: RS-232, USB and Ethernet (standard); GPIB (option)
| Type | Voltage VRMS / Vpk | Electricity ARMS / Apk | Number of channels |
| XT2640AD | 1000/1750 | 20/140 | 1 .. 4 |
| XT2640AX | 1000/1750 | external probe | 1 .. 4 |
| XT2640AH | 1000/1750 | 30/200 | 1 .. 4 |
| XT2640WD | 650/1750 | 20/140 | 1 .. 4 |
| XT2640SD | 1000/1750 | 20/140 | 1 .. 4 |
| XT2640ED | 160/175 | 20/140 | 1 .. 4 |
