Aktive Lasten Serie PEL 5000C


The single-channel electronic load of the GW Instek PEL-5000C series offers 150V / 600V / 1200V models with a power range of 6 kW .. 24 kW. The PEL-5000C series consists of 24 models with different combinations of power, voltage and current. With this, it is possible to check the specifications of batteries, chargers / charging stations for electric vehicles, batteries for electric vehicles and solar modules. The PEL-5000C series supports parallel connection with the same voltage and different power models; up to 8 devices can be connected in parallel

GWINSTEK
Stk :
Offerte anfragen


 Maximum power up to 192 KW
 Maximum up to 8 devices in master / slave parallel control
 5-digit V / A / W display
 Large LCD display
 Voltage, current and power can be displayed at the same time
 Suitable for testing the power factor correction (PFC) (for 600 V and 1200 V models)
 OCP, OPP, OTP and OVP
 Adjustable power-on status
 CC, CR, CV, CC + CV, CP + CV, CP, dynamic operating mode
 Short-circuit simulation with time limit
 Optional interfaces: GPIB, RS232, USB, LAN

 Type Voltage
VDC
 Current
A
 Power
W

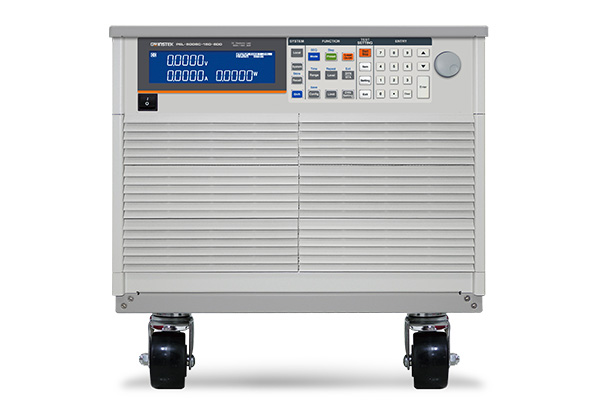

PEL-5006C-150-6000 .. 1500 .. 60/0 .. 6006000

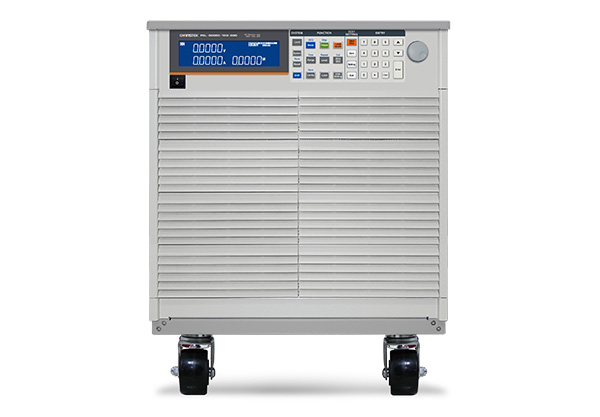

PEL-5008C-150-8000 .. 1500 .. 80/0 .. 8008000
PEL-5010C-150-10000 .. 1500 .. 100/0 .. 100010,000
PEL-5012C-150-12000 .. 1500 .. 120/0 .. 120012000

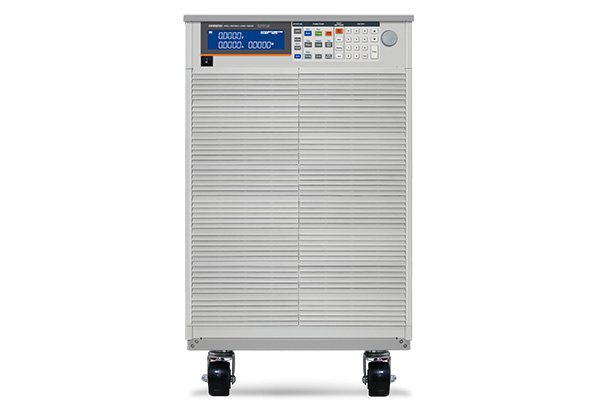

PEL-5015C-150-15000 .. 1500 .. 150/0 .. 150015000
PEL-5018C-150-18000 .. 1500 .. 180/0 .. 180018000

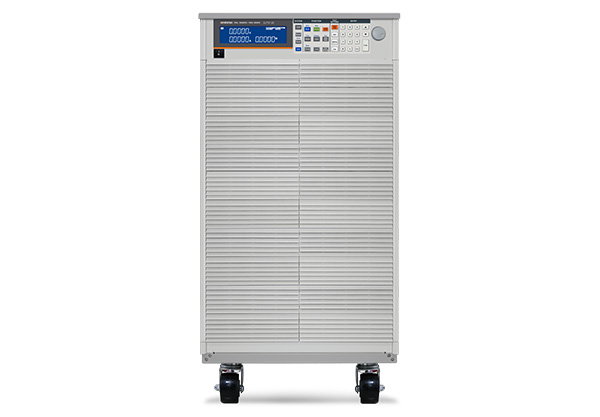

PEL-5020C-150-20000 .. 1500 .. 200/0 .. 200020000
PEL-5024C-150-20000 .. 1500 .. 200/0 .. 200024000
PEL-5006C-600-4200 .. 6000 .. 42/0 .. 4206000
PEL-5008C-600-5600 .. 6000 .. 56/0 .. 5608000
PEL-5010C-600-7000 .. 6000 .. 70/0 .. 70010,000
PEL-5012C-600-8400 .. 6000 .. 84/0 .. 84012000
PEL-5015C-600-10500 .. 6000 .. 105/0 .. 105015000
PEL-5018C-600-12600 .. 6000 .. 126/0 .. 126018000
PEL-5020C-600-14000 .. 6000 .. 140/0 .. 140020000
PEL-5024C-600-16800 .. 6000 .. 168/0 .. 168024000
PEL-5006C-1200-2400 .. 12000 .. 24/0 .. 2406000
PEL-5008C-1200-3200 .. 12000 .. 32/0 .. 3208000
PEL-5010C-1200-4000 .. 12000 .. 40/0 .. 40010,000
PEL-5012C-1200-4800 .. 12000 .. 48/0 .. 48012000
PEL-5015C-1200-6000 .. 12000 .. 60/0 .. 60015000
PEL-5018C-1200-7200 .. 12000 .. 72/0 .. 72018000
PEL-5020C-1200-8000 .. 12000 .. 80/0 .. 80020000
PEL-5024C-1200-9600 .. 12000 .. 96/0 .. 96024000
