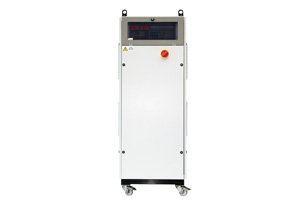

Programmierbare dreiphasige AC-Quelle der Serie TPS/T

The TPS / T series includes 5 models of AC sources for a power range from 10 kVA to 90 kVA. This enables controllable single- or three-phase output voltages up to 150 V or 300 V and frequencies from 10 Hz to 80 Hz (via remote) to be generated. Ideal for functional tests in development environments

Stk :
Offerte anfragen


 Simple operation directly on
 the device.Parameters can be entered using the membrane keypad on the front.
 Outputs from 10 kVA to 90 kVA.
 Adjustable three-phase output voltages.
 Switchable between 150 V and 300 V ranges.
 Remote sense connections on the rear.
 Output frequency switchable via panel: 50 Hz or 60 Hz
 Output frequency via remote software: 40 Hz to 80 Hz (from 10 Hz with limited output voltages)
 With galvanic isolation
 RS-232 interface
 As an option: LAN, GPIB, RS485, voltage and PLC interfaces
 Labview compatible

 Type Output voltage
V
 Output frequency
Hz (panel)
 Output frequency
Hz (remote)
 Power
VA
 Number of phasesdata sheet
TPS / T 10K0 .. 150/0 .. 30050/60
10 .. 80
10,000
1/3
TPS / T 20K0 .. 150/0 .. 30050/60
10 .. 80
20,000
1/3
TPS / T 40K0 .. 150/0 .. 30050/60
10 .. 80
40,000
1/3
TPS / T 60K0 .. 150/0 .. 30050/60
10 .. 80
60,000
1/3
TPS / T 90K0 .. 150/0 .. 30050/60
10 .. 80
90,000
1/3
