Leistungsmessgeräte Serie 2553

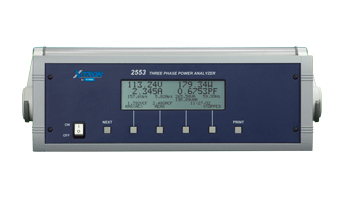

Three-channel power
meter 2553 Direct measurements up to 1500 Vpk and 40 Apk
The graphic display shows numerical results, waveforms, bar graphs, start and progress diagrams with zoom and scroll functions
Power and amplitude measurements with an accuracy of <0.1%
Frequency range: DC and 20 mHz .. 80 kHz
peak, rms, rectified and DC component measurements of voltage, current and power
measurement of THD, PF, harmonic integration mode for W-Hr, A-Hr, VA-Hr and integrated average power
interfaces: GPIB
16-bit A / D converter with 220 ksps
| Type | Voltage VRMS / Vpk | Electricity ARMS / Apk | Number of channels |
| 2553-400V-8A | - / 400 | - / 8th | 3 |
| 2553-400V-40A | - / 400 | - / 40 | 3 |
| 2553-950V-8A | - / 950 | - / 8th | 3 |
| 2553-950V-40A | - / 950 | - / 40 | 3 |
| 2553-1500V-8A | - / 1500 | - / 8th | 3 |
| 2553-1500V-40A | - / 1500 | - / 40 | 3 |
