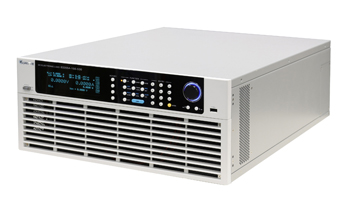

Programmierbare elektronische DC-Last der Serie 63200A
The 63200A series electronic DC loads, designed for applications in research and development, production and incoming goods inspection, are ideal for testing high-performance AC / DC power supplies, DC / DC converters, chargers and power electronics components. The performance can be increased even further by connecting in parallel and by synchronization.
Maximum power per device: 4 kW, 5 kW, 6 kW, 24 kW Load voltages
up to 150, 600 and 1200 V
Load currents up to 2000 A
Very precise voltage and current recording
User-defined waveform (UDW)
USB interface standard; Ethernet and GPIB interfaces as an option
Synchronization with multiple loads
High dynamic load on the DUT
Flexible CC, CR, CP and CV operating modes
Fast response thanks to rise speeds of up to 200 A / µs (type-dependent)
Very low minimum operating voltages
| Type | Voltage V | Current A | Power kW |
| 63204A-150-400 | 150 | 400 | 4.0 |
| 63205A-150-500 | 150 | 500 | 5.0 |
| 63206A-150-600 | 150 | 600 | 6.0 |
| 63224A-150-2000 | 150 | 2000 | 24.0 |
| 63204A-600-280 | 600 | 280 | 4.0 |
| 63205A-600-350 | 600 | 350 | 5.0 |
| 63206A-600-420 | 600 | 420 | 6.0 |
| 63224A-600-1680 | 600 | 1680 | 24.0 |
| 63204A-1200-160 | 1200 | 160 | 4.0 |
| 63205A-1200-200 | 1200 | 200 | 5.0 |
| 63206A-1200-240 | 1200 | 240 | 6.0 |
| 63224A-1200-960 | 1200 | 960 | 24.0 |
