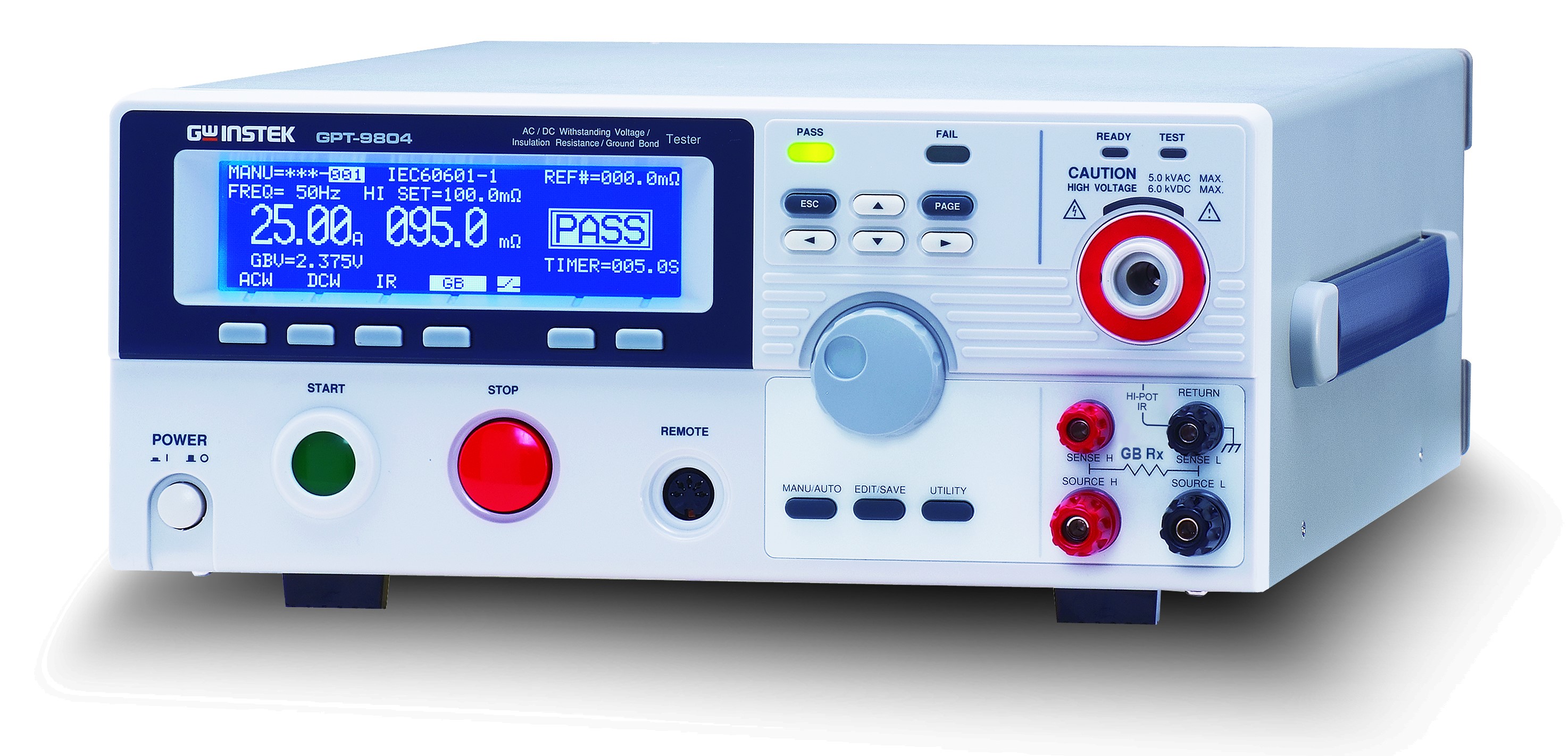

Sicherheitstester GPT-9800
GWINSTEK presents the safety measuring device GPT-9800 with an output of 200 VA: this device, ideal for the laboratory and development, is available in 4 versions with different functions: dielectric tests in AC and DC, insulation measurement and protective conductor measurement.
Dielectric strength test: up to 5 kVAC with a power of 200 VA and 6 kVDC with a power of 50 W
Megohmmeter: up to 50 GOhm at 1000 VDC
Protective conductor resistance : at 6 V / 3 .. 32 A
Programmable test ramps and test sequences
Interfaces: RS232 / USB / signal IO
| model | HV-AC | HV-DC | isolation | Protective conductor |
| GPT-9801 | ü | |||
| GPT-9802 | ü | ü | ||
| GPT-9803 | ü | ü | ü | |
| GPT-9804 | ü | ü | ü | ü |
